Flying probe tester-W12H
Flying probe tester-W12H

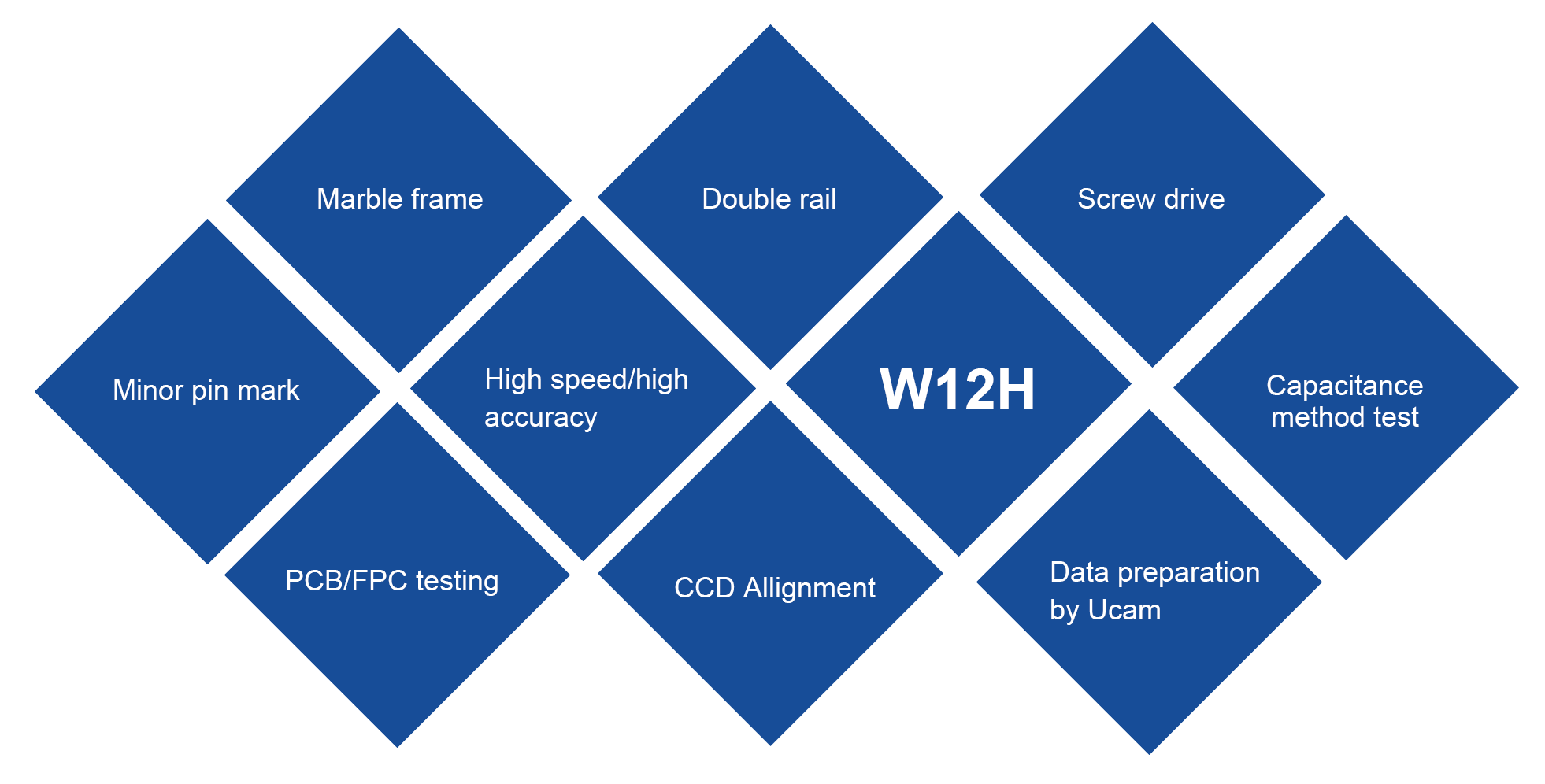

The front and rear high-definition CCD probes can accurately locate the center of the testing point and check error messages clearly. High-precision screw drive can conduct insulation and continuity tests for PCB boards with high component layout、Multi-layers、high wiring density and testing point of short distance. Using the "true value comparison positioning method" can monitor the test process and defect points in real time to ensure the accuracy of the test. Not limited by the net grid, but flexible、fast and efficient.
Machine configuration | |
Motor | Yaskawa |
Drive | Yaskawa |
Screw | NSK |
Guide rail | IKO |
Coupling | NBK |
Power supply box | Mean Well |
Product project | Parameter |
Operation system | Windows 10 |
Max.test area | 620*520mm |
Min.test area | No limit |
Max.board thickness | 6mm |
Min.board thickness | 0.6mm |
Alignment resolution | 5um |
Min.pad size | 0.05mm(2mil) |
Min.pad space | 0.05mm(2mil) |
Max.testing speed | 1500-3000/min |
Probe No | 2 front 2 rear |
Probe pressure | 5-30mil(Optional) |
Data format | MNF1 & MNF2 |
Data Software | Ucam |
CCD | 1 front 1 rear |
Testing pressure | 20V-500V |
Testing current | 5mA-200mA |
Continuity test range | 20hm-10kohm |
Insulation test range | 5Mohm-500Mohm |
Equivalent test range | 0.1pF-10mF |
Air compressor pressure | 3Par Air |
Temperature | 22℃-26℃ |
Power supply | 220V |
Weight | 900KG |
Dimension | 1800mm*760mm*1800mm |
